氣動絲扣球閥
氣動絲扣球閥
公稱通徑：DN6~100mm
公稱壓力：1.6~6.4MPa 1000WOG
工作溫度：常溫型：-20℃~80℃(丁腈橡膠O型圈
適用溫度：PTFE≤150℃、PPL≤300℃、金屬密封≤425℃
鏈接方式：螺紋NPT、RC、BSPT及BW SW等
閥體材質：鑄鋼、不銹鋼304/316/316L等
作用方式：雙作用活塞式、單作用彈簧復位式
主要性能參數
所配置氣動執行機構技術參數 Technical parameters of the configured pneumatic actuator | 閥體主要技術參數 Main technical parameters of valve body | ||
氣缸類型 Cylinder type | GT系列、AT系列、AW系列 GT series, AT series, AW series | 閥門類型 Valve type | 二片式、三片式 Two-piece type and three-piece type |
作用方式 Work way | 雙作用活塞式、單作用彈簧復位式 Double acting piston type, single acting spring return type | 閥門型號 Valve type | Q611F/N/PPL/H Q661 |
氣源壓力 Air pressure | 4~8Bar | 連接方式 Connection mode | 螺紋NPT、RC、BSPT及BW SW等 Thread NPT, RC, BSPT and BW SW, etc |
工作介質 Working medium | 干燥、清潔不含腐蝕氣體 Dry and clean without corrosive gas | 公稱通徑 Nominal diameter | DN6~100mm |
工作溫度Working temperature | 常溫型：-20℃~80℃(丁腈橡膠O型圈) Room temperature type: ~ 20 ℃ to 80 ℃ (nitrile rubber O-rings) | 公稱壓力 Nominal pressure | 1.6~6.4MPa 1000WOG |
高溫型：-20℃~160℃(氟橡膠O型圈) High temperature type: - 20 ℃ to 160℃ (fluorine rubber O-rings) | 閥體材質 Body material | 鑄鋼、不銹鋼304/316/316L等 Cast steel, stainless steel 304/316/316l, etc | |
動作范圍 Range of motion | 0~90°±5° | 球體材質 Ball material | 不銹鋼304/316/316L等 Stainless steel 304/316/316l etc |
接口螺紋 Interface thread | GT52~GT83 G1/8" | 閥座密封 Seat tightness | PTFE、PPL、金屬材料密封等 Metal material seal, etc |
GT110~GT210 AT52~AT210 G1/4" | 適用溫度 Suitable temperature | PTFE≤150℃、PPL≤300℃、金屬密封 Metal seal≤425℃ | |
閥位信號 Valve position signal | 定位器：4~20mA/回信器：全開全關信號 Locator: 4~20mA/reply: full ON/OFF signal | 適用介質 Applicable medium | 水、蒸汽及油品等腐蝕性和非腐蝕性介質 Water, steam, oil corrosion and the corrosion medium, etc |

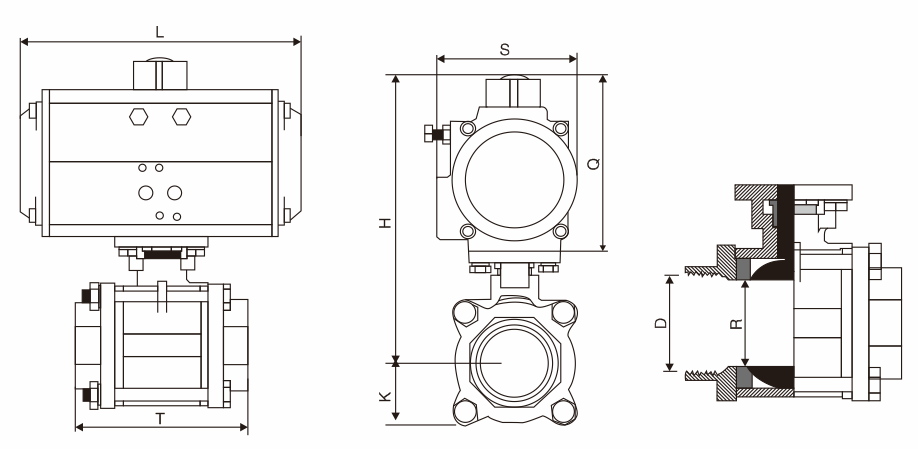

主要外形連接尺寸
所配置氣動執行機構技術參數 Technical parameters of the configured pneumatic actuator | 閥體主要技術參數 Main technical parameters of valve body | ||
氣缸類型 Cylinder type | GT系列、AT系列、AW系列 GT series, AT series, AW series | 閥門類型 Valve type | 二片式、三片式 Two-piece type and three-piece type |
作用方式 Work way | 雙作用活塞式、單作用彈簧復位式 Double acting piston type, single acting spring return type | 閥門型號 Valve type | Q611F/N/PPL/H Q661 |
氣源壓力 Air pressure | 4~8Bar | 連接方式 Connection mode | 螺紋NPT、RC、BSPT及BW SW等 Thread NPT, RC, BSPT and BW SW, etc |
工作介質 Working medium | 干燥、清潔不含腐蝕氣體 Dry and clean without corrosive gas | 公稱通徑 Nominal diameter | DN6~100mm |
工作溫度Working temperature | 常溫型：-20℃~80℃(丁腈橡膠O型圈) Room temperature type: ~ 20 ℃ to 80 ℃ (nitrile rubber O-rings) | 公稱壓力 Nominal pressure | 1.6~6.4MPa 1000WOG |
高溫型：-20℃~160℃(氟橡膠O型圈) High temperature type: - 20 ℃ to 160℃ (fluorine rubber O-rings) | 閥體材質 Body material | 鑄鋼、不銹鋼304/316/316L等 Cast steel, stainless steel 304/316/316l, etc | |
動作范圍 Range of motion | 0~90°±5° | 球體材質 Ball material | 不銹鋼304/316/316L等 Stainless steel 304/316/316l etc |
接口螺紋 Interface thread | GT52~GT83 G1/8" | 閥座密封 Seat tightness | PTFE、PPL、金屬材料密封等 Metal material seal, etc |
GT110~GT210 AT52~AT210 G1/4" | 適用溫度 Suitable temperature | PTFE≤150℃、PPL≤300℃、金屬密封 Metal seal≤425℃ | |
閥位信號 Valve position signal | 定位器：4~20mA/回信器：全開全關信號 Locator: 4~20mA/reply: full ON/OFF signal | 適用介質 Applicable medium | 水、蒸汽及油品等腐蝕性和非腐蝕性介質 Water, steam, oil corrosion and the corrosion medium, etc |
