Electric quick load ball valve

公稱通徑：DN15～100mm
公稱壓力：PN1.0MPa
閥體形式：Two general formula
連接形式：Fast-loading (clamp type),welding type and threaded type
適用溫度：PTFE≤180℃
適用介質：Beer, Wine, Bioengineering, Food, Pharmaceutical, Beverage,Dairy, etc
產品特點：Safety and hygiene, good sealing and long service life

shared：

產品詳細

Main Performance Parameters

Type of body	Two general formula
Nominal diameter	DN15～100mm
Nominal pressure	PN1.0MPa
Connection form	Fast-loading (clamp type),welding type and threaded type
Applicable temperature	PTFE≤180℃
Applicable medium	Beer, Wine, Bioengineering, Food, Pharmaceutical, Beverage,Dairy, etc
Product characteristics	Safety and hygiene, good sealing and long service life

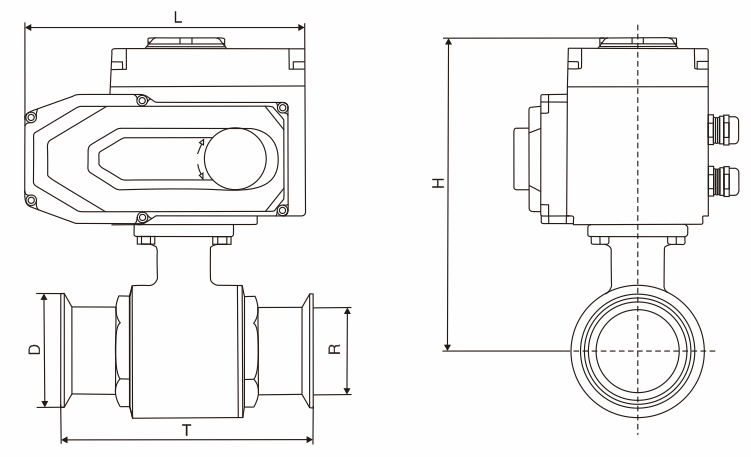

Main Outline Connection Size

Nominal diameter	Dimension labeling code pressure: 1.6 MPa unit: mm					Electric actuator configuration
Nominal diameter	L	H	T	R	D	Electric actuator configuration
DN15	160	147	100	19	50.5	AX-05B
DN20	160	147	105	25	50.5	AX-05B
DN25	160	153	120	32	50.5	AX-05B
DN32	200	193	136	38	50.5	AX-10B
DN40	200	196	160	51	64	AX-10B
DN50	200	225	170	63	77	AX-10B
DN65	252	260	196	76	91	AX-20B
DN80	252	288	235	89	106	AX-40B
DN100	252	333	270	102	119	AX-60B
